The VRC-1000Y hydraulic valve remote control device consists of a console, a hydraulic pump station, a solenoid valve box, a hydraulic valve, an emergency manual pump and an emergency valve block. The device is powered by hydraulic oil and can control the valve remotely and centrally manually or automatically by computer. It is easy to operate, safe and reliable. It is suitable for remote opening and closing control of pipeline valves in various types of ships such as oil tankers, chemical tankers, oil platforms, and bulk carriers.
Main parameters:
Device model: VRC-1000Y
Device power supply: AC 220V/380V/440V 50Hz
Working temperature:-10-55℃
Relative humidity: ≤95%
Working pressure: 8-13.5MPa
Fuel tank volume: 200L
Filtration precision: 20μ
Motor power: 1.5KW
Protection level: IP22

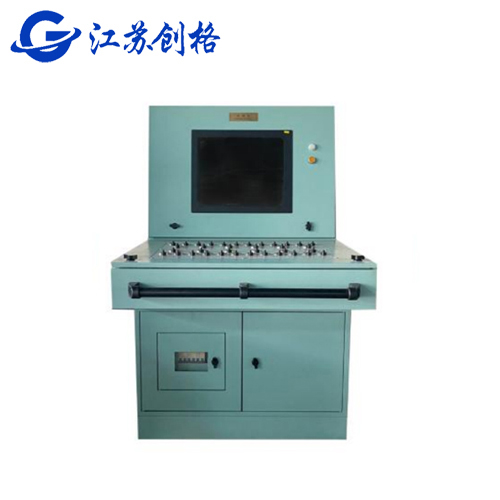

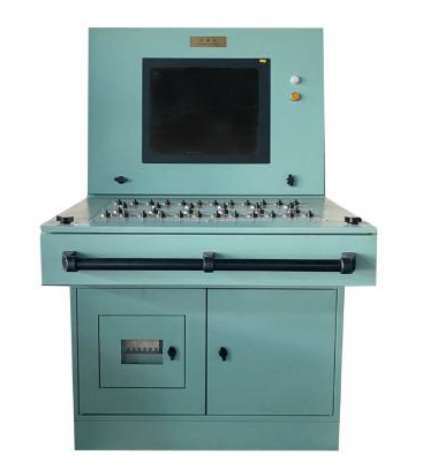

console
This equipment has two basic types: computer-operated type and switch-operated type.
Equipment function: operate and control valve opening and closing
Display the working status of the controlled valve
Monitor the work of hydraulic pump station (start, stop and alarm)
Monitoring of other related equipment

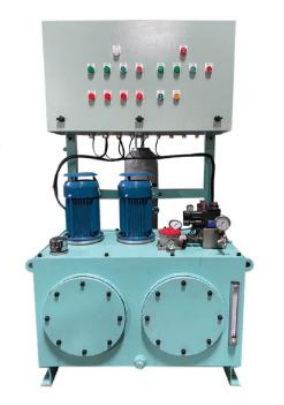

VRC-HPU hydraulic pump station
Provide 8-13.5MPa hydraulic power to the device;
Equipped with two oil pump units that are mutually backup;
Single pump displacement: 6L/min;
Low tank level alarm;
High and low oil pressure alarm;
Filter clogged alarm;
High oil pressure overflow;
20L accumulator.
VRC-SVB solenoid valve box
The solenoid valve box is composed of a valve block group, an electromagnetic reversing valve, a pressure gauge, an emergency valve block, a stop valve, a quick connector, a pressure switch (optional), an opening indicator (optional), etc. The console controls the electromagnetic reversing valve to change the direction of the oil circuit, and the hydraulic actuator drives the opening and closing of the hydraulic valve.
